Trench Sheets

Trench sheets are available in a wide range of lengths and are generally specified to support the vertical faces of most small to medium sized trenches. The sheets are designed to be handled by excavators using the bucket to drive the sheets vertically into the ground, and are fully compatible with the complete shoring range.

Categories: Excavation, General Building, Ground Support, Groundworks, Pipe laying

Description

Product Description

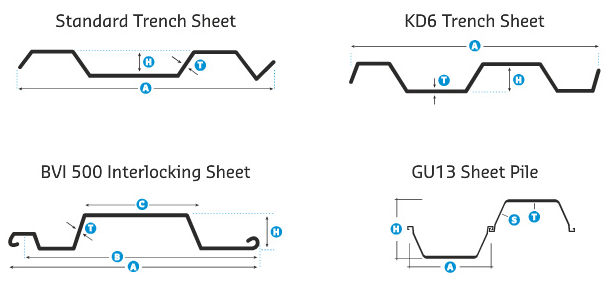

Trench Sheets Diagrams ProMech Ground Support Systems in Hampshire, East Sussex, Somerset

Key:
T = Thickness W = Width(1) C = Width(2) D = Depth

	Standard Sheet	FKD 400/6	BD500 Sheet	BVI500 Sheet
Steel Grade	S 275 JR	S 275 JRC	S 275 JR	S 275 JR
Width(mm) W	330	400	552.9	535.2
Width(mm) C	115	198	220	230.6
Depth(mm) D	35	50	50	75
Thickness(mm) T	3.5	6.0	6.0	6.0
Weight(kg/m)	10.8	22.1	27.74	33.53
Section Modulus cm³ per metre	48.3	98.8	100	91.863
Available Lengths	2m-6m	3m-6m	3m-8m	3m-8m
