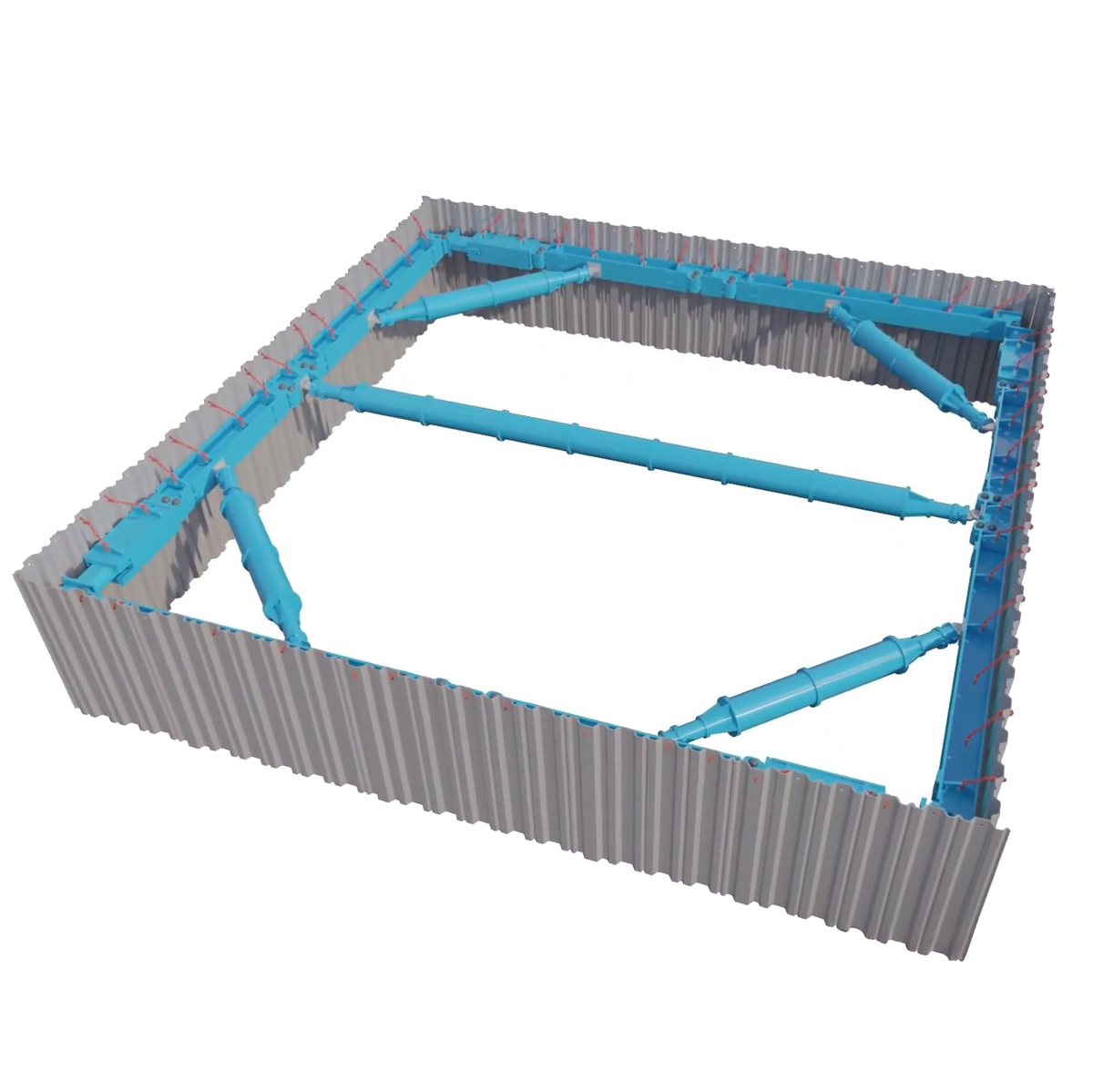

Promech-Hire-Atlas-300-Brace-Render

Atlas 300 Brace

The Pro-Mech Atlas 300 Brace is a high load four-sided hydraulic modular bracing system for use with trench sheets and sheet piles.

The brace can be used for excavations between 2.00mtr – 15.00mtr sheet to sheet clear span without the use of centre struts. Bigger spans can be achieved with corner & centre struts.

Typical Applications

  • Large Tanks – Interceptor, Storage, Fuel Tanks
  • Cofferdams, Basements

Features / Benefits

  • Modular extensions for easy installations.
  • Double pinned joints for easy quick connections.
  • 600 KN double acting hydraulic with built in lock of valve
  • Ideal for large clear span excavations.

Product Description

No. Profile Weight Each (kg)
1 Hydraulic Unit 625
2 0.5m extension 200
3 1m extension 350
4 1.5m extension 450
5 2.5m extension 600
6 6m extension 1200
